Mercury 230 AR
Product code: 230 AR

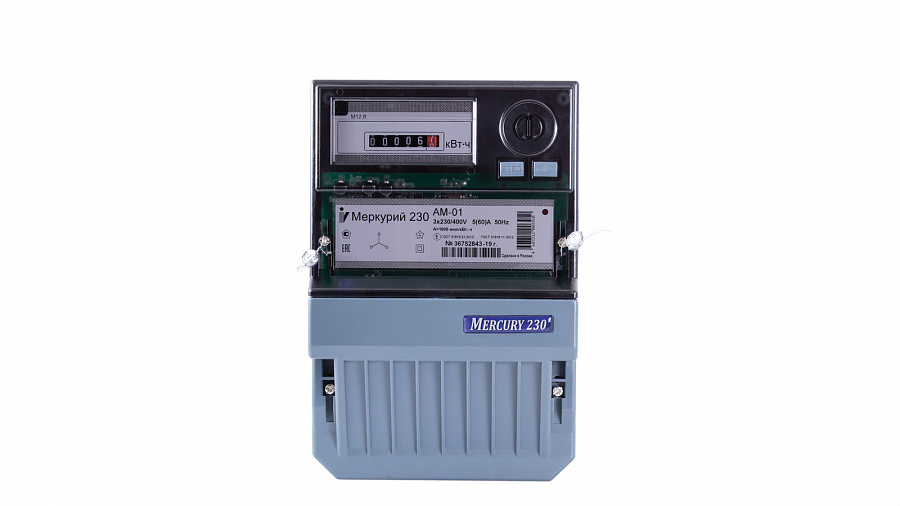

Mercury 230 AM
Product code: 230 AM
APPLICATION
The meters are designed for single-tariff measurement of active electric energy in three-phase three- and four-wired AC networks. The meters are designed for indoor operation and can be installed in the areas with additional environmental protection (installed inside premises, cabinets or boards).
MODIFICATIONS
The meter modifications are available with different rated voltage, rated and peak current.
Need help? Send us a message
Metrological performance
| Meter accuracy class (active/reactive) |
|
| • transformer connection | 0.5S |
| • direct connection |
1 |
| Rated voltage, V |
|
| • CT&VT connection | 3*57,7 / 100 |
| • CT, direct connections | 3*230 / 400 |
| Base/peak current, A |
|
| • CT, CT&VT connections | 5 / 7.5 |
| • direct connection | 5 / 60; 10 / 100 |
| Peak current for direct connection meters during 10 ms | 30*I max |
| Peak current for CT, CT&VT connection meters during 0.5 s | 20*I max |
| Starting current, А |
|
| • CT, CT&VT connections | 0.005 |
| • direct connection | 0.02 / 0.025 |
REGULATORY COMPLIANCE
GOST R 52320, GOST R 52322, GOST R 52323. State registers of Russia and CIS countries.
| Active/total power consumption in each meter voltage circuit at rated voltage, W/V*A | 1 / 8 |
| Total power consumed by each current circuit, max, V*А | 0.1 |
| Calibration interval, years | 10 |
| Warranty period, years | 3 |
| Mean time between failures, min, h | 140,000 |
| Operating temperature range, °C | -40 to +55 |
| Weight, max, kg | 1.5 |
| Dimensions (LхWхH), mm | 170x74x258 |
— Digital measurement of electrical energy.
— Energy measurement independently from current circuits phasing (measurement per module).
— Counter with anti-reverse mechanism and magnetic fields protection.
Table of commercially available meters modifications. Other modifications are available on request.
| Modification | Rated voltage, V | Nominal/ maximum current, А | Accuracy A/R |
|---|---|---|---|
| Mercury 230 AM-00 | 3*57,7/100 | 5(7,5) | 0,5S |
| Mercury 230 AM-01 | 3*230/400 | 5(60) | 1,0 |
| Mercury 230 AM-02 | 3*230/400 | 10(100) | 1,0 |
| Mercury 230 AM-03 | 3*230/400 | 5(7,5) | 0,5S |
Meter modification code structure:
Mercury 230 АМ-0Х
А – active energy measurement,
М – electromechanical counter,
0Х – code of rated/peak current and voltage, accuracy class,
Rated/peak currents, voltages and accuracy classes
| Code | Rated (peak) current, A | Rated voltage, V | Code Accuracy class |
| 00 | 5/10 | 3 x 57.7/100 | 0.2S/0.5 or 0.5S/1 |
| 01 | 5/60 | 3 x 230/400 | 1/2 |
| 02 | 5/100 | 3 x 230/400 | 1/2 |
| 03 | 5/10 | 3 x 230/400 | 0.2S/0.5 or 0.5S/1 |
