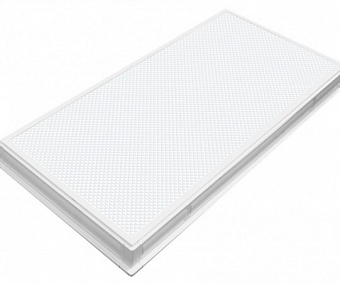

Office LED panel 20W
Product code: OFFICE 20-P600x300
|
Power |
20W | |
|
Luminous flux @ 3,000К |
2,300lm |
|
|
Luminous flux @ 5,000К |
2,400lm |
|
|
Efficacy |
120lm/W | |
|
Ingress protection |
IP30 | |

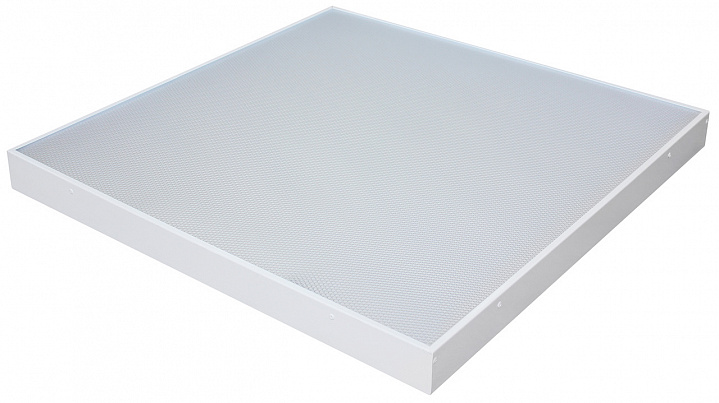

Office LED panel 41W
Product code: OFFICE 41-M600x600
|
Power |
41W |
| Luminous flux @ 3,000К |
4,000lm |
|
Luminous flux @ 4,000К |
4,200lm |
| Efficacy | 102lm/W |
| Ingress protection | IP40 |
Need help? Send us a message
Diffuser
- Microprismatic Diamond
- Microprismatic Honeycomb
- Opal plexiglas Acrima
- Opaque opal PC
- Transparent
- Transluscent opal
Replacement for 4x18W fluorescent luminaire
- Higher quality of light output
- High CRI
- Lower power consumption
- Longer lifetime, 15-18 years @ working hours
- Eco-friendly
- Ideal of suspended ceilings (Armstrong)
| Power | 41 W |
| Voltage / Frequency | 176-264V/ 50Hz |

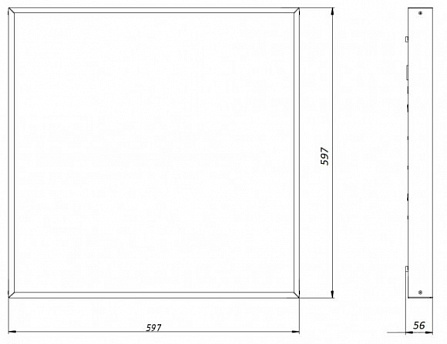

| Dimensions, LхWхH | 595х595х50 mm |
| Power factor | >0.9 |
| Luminous flux @ | |
| 3,000 К | 4,000 lm |
| 4,000 К | 4,200 lm |
| Efficacy | 102 lm/W |

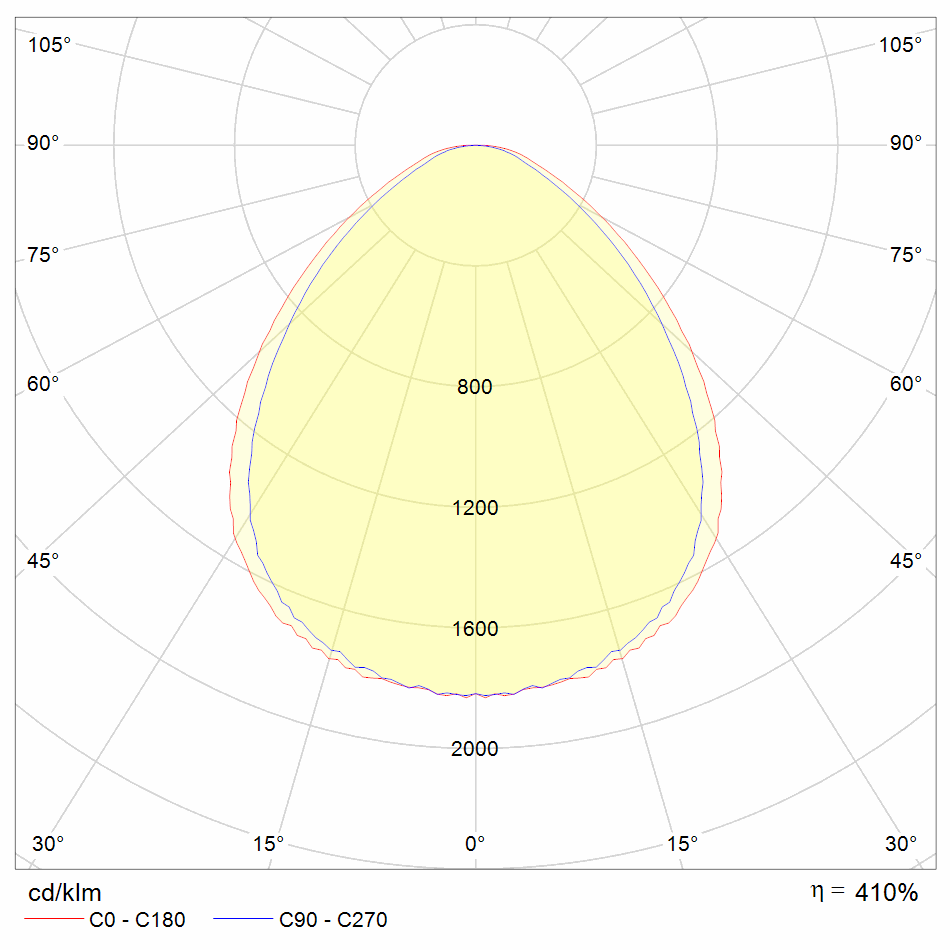

| Light distribution | 75º, 90º, 95º (D) - depending on a diffuser type |
| CRI, Ra | >80 |
| Percent flicker | <5% |
| Number of LEDs | 192 x 0.5 W |
| Ingress protection | IP40 |
| Operating temperatures | +1°С to +45°С |
| Light distribution | 50,000 hrs |
| Electrical Safety Classification | I |
| Wire section | 3х0.75 mm³ |
| Weight ntw/gross | 3.4kg / 4.0kg |
| Individual package | 630x615x75 |
Office Slim LED panel 8W
Product code: SLIMPANEL.2-P150x600-8
|
Power |
8W |
|
Luminous flux @ 3,000К |
700lm |
| Luminous flux @ 4,000К | 900lm |
| Luminous flux @ 5,000К | 900lm |
| Efficacy | 112lm/W |
| Ingress protection | IP40 |
Office LED panel 25W
Product code: OFFICE 25-M600x600
|
Power |
25W |
| Luminous flux @ 3,000К | 2,600lm |
|
Luminous flux @ 4,000К |
2,800lm |
| Efficacy | 112lm/W |
| Ingress protection | IP40 |

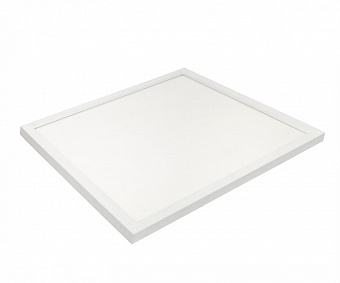

Office Slim LED panel 24W
Product code: SLIMPANEL.1-P600x600-25
|
Power |
24W |
|
Luminous flux @ 3,000К |
2,700lm |
| Luminous flux @ 4,000К | 3,300lm |
| Luminous flux @ 5,000К | 3,300lm |
| Efficacy | 137 lm/W |
| Ingress protection | IP20 |
