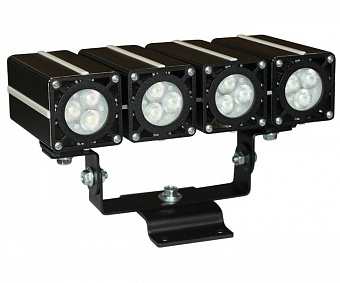

LED floodlights 32W (DS-LFL-30-4x3)
Product code: DS-LFL-32-4x3
Power |
32 |
Luminous flux @ 4,000К | 3,000 |
Efficacy | 94lm/W |
Ingress protection | IP65 |
Power |
25 |
Luminous flux @ 4,000К | 2,300 |
Efficacy | 94lm/W |
Ingress protection | IP65 |
Floodlights come in grey and black housings. Colour can be customized.
Floodlights are available in two versions: with a built-in 230 V driver and with an external 230 V group driver (total power depends on number of basic modules).
Power | 25 W |
Voltage / Frequency | 176-276V/ 50Hz |

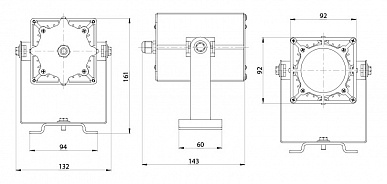

Dimensions, LхWхH | 132x143x161 mm |
Power factor | >0.9 |
Luminous flux @ 4,000К | 2,300 |
Efficacy | 94 lm/W |
CRI, Ra | >70 |
Beam angle, degree | 10, 15, 40 |
Ingress protection | IP65 |
Operating temperatures range | -40°С to +50°С |
Luminaire lifecycle | 50,000 hrs |
Electrical Safety Classification | IбШШ |
Wire section | 3х0.75 mm² |
Operating conditions | F 1 (large geographical areas with cold climate, outdoor application) |
Weight ntw/gross | 2,2kg / 2,4kg |
Individual package | 231x123x151 mm |
Power |
32 |
Luminous flux @ 4,000К | 3,000 |
Efficacy | 94lm/W |
Ingress protection | IP65 |
Power |
440 |
Luminous flux @ 5,000К | 51,000 |
Efficacy | 116lm/W |
Ingress protection | IP65 |
Power |
880 |
Luminous flux @ 4,000К | 102,000 |
Efficacy | 115lm/W |
Ingress protection | IP65 |
Power |
1,320 |
Luminous flux @ 4,000К | 153,000 |
Efficacy | 115lm/W |
Ingress protection | IP65 |
